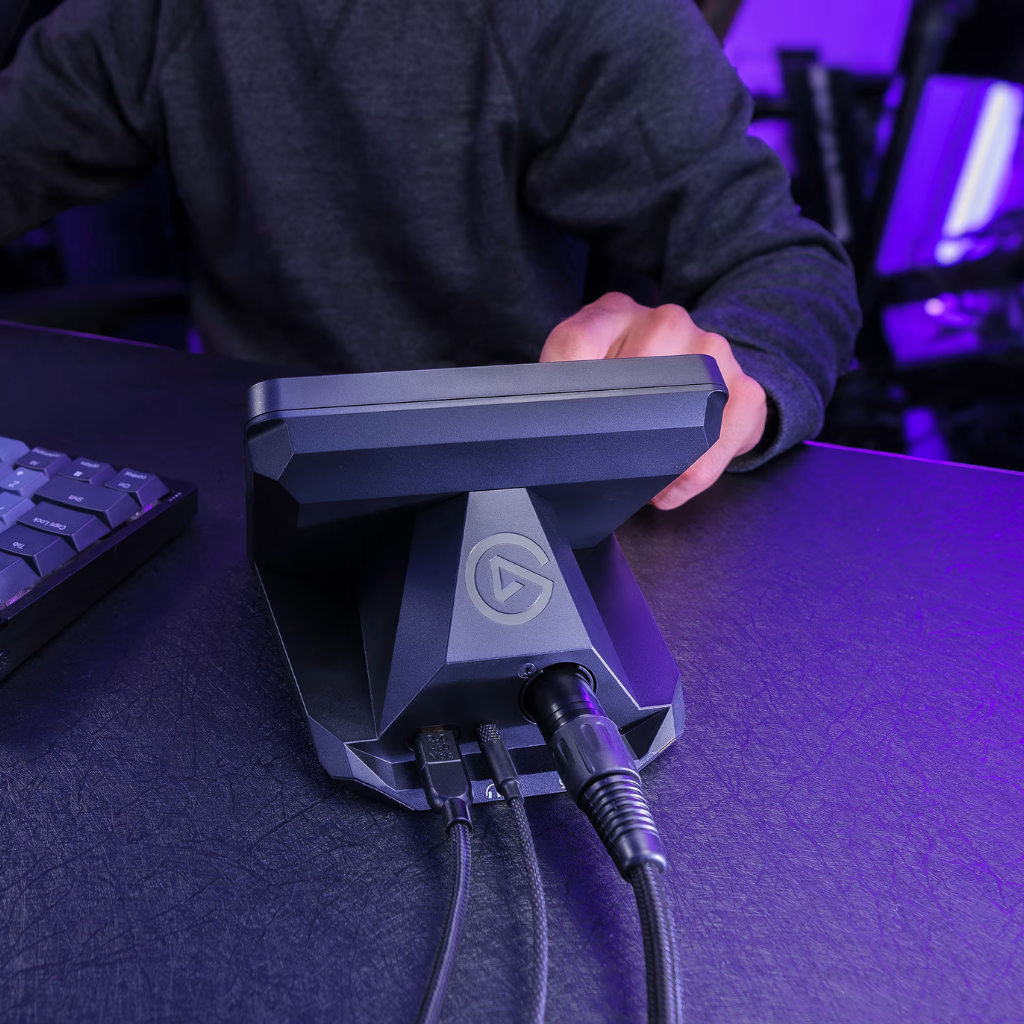

Elgato XLR Dock MK.2 Mic Interface for Stream Deck+ EL-10GBQ9901

MODEL: EL-10GBQ9901

RESOLUTION: 24bit

SAMPLE RATE: 48kHz

FREQUENCY RESPONSE (XLR INPUT): Max gain deviation 20Hz - 20kHz < 0.3dB

FREQUENCY RESPONSE (HEADPHONE, 32 OHM): Max gain deviation 20Hz - 20kHz < 0.3dB

DYNAMIC RANGE: 137dB

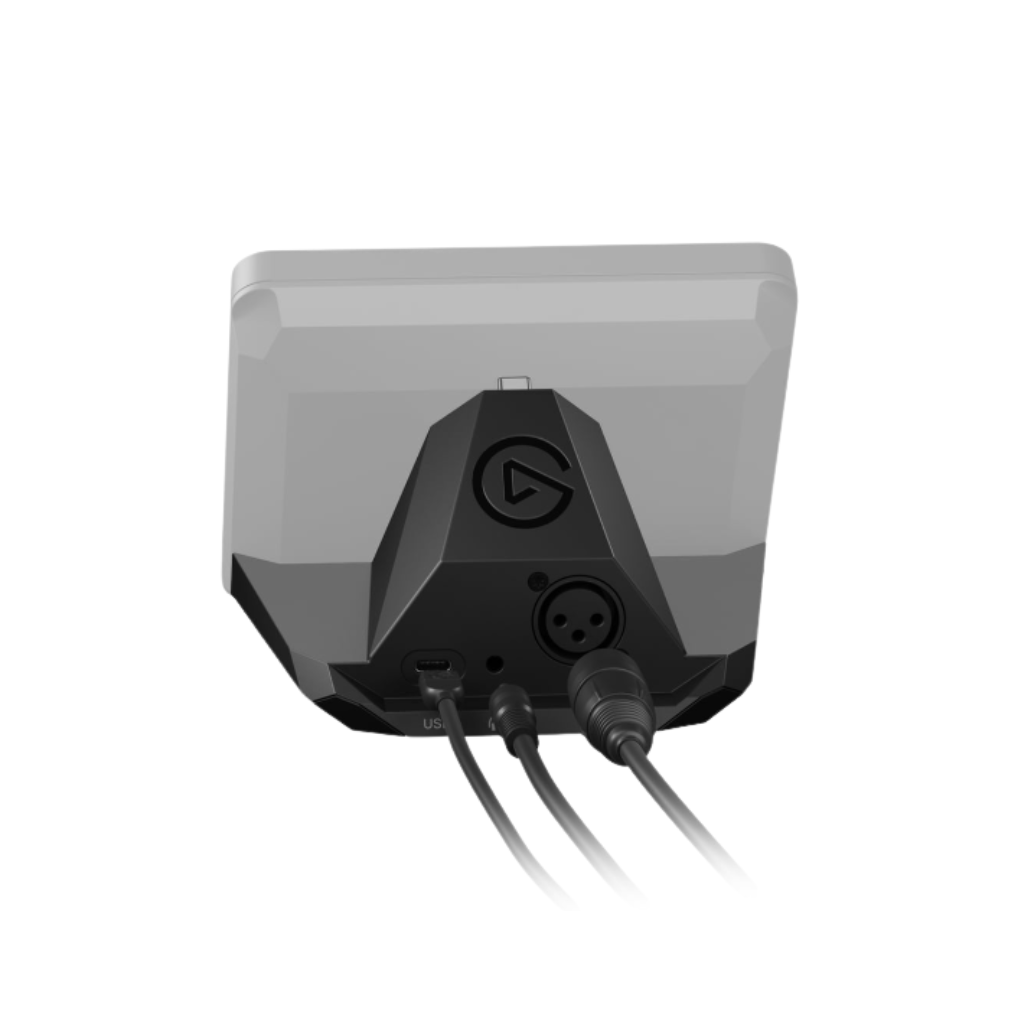

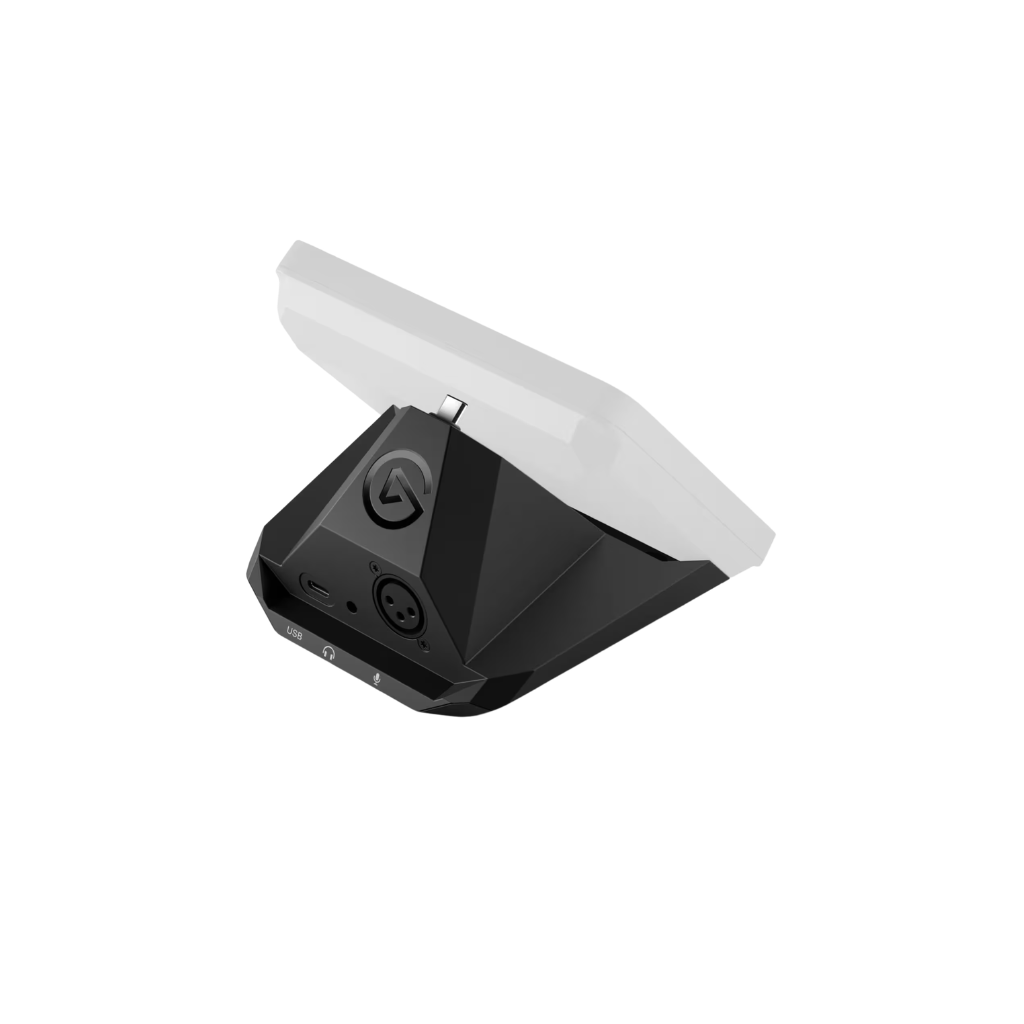

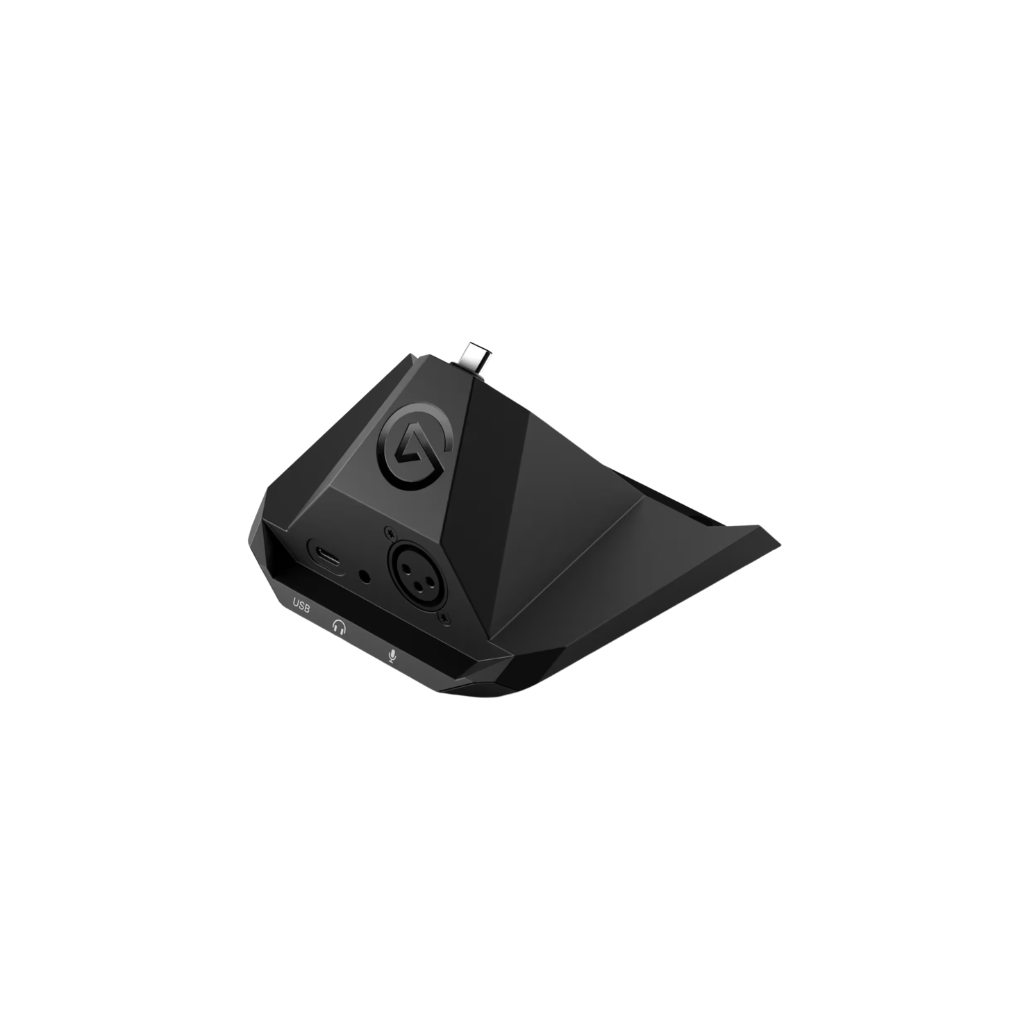

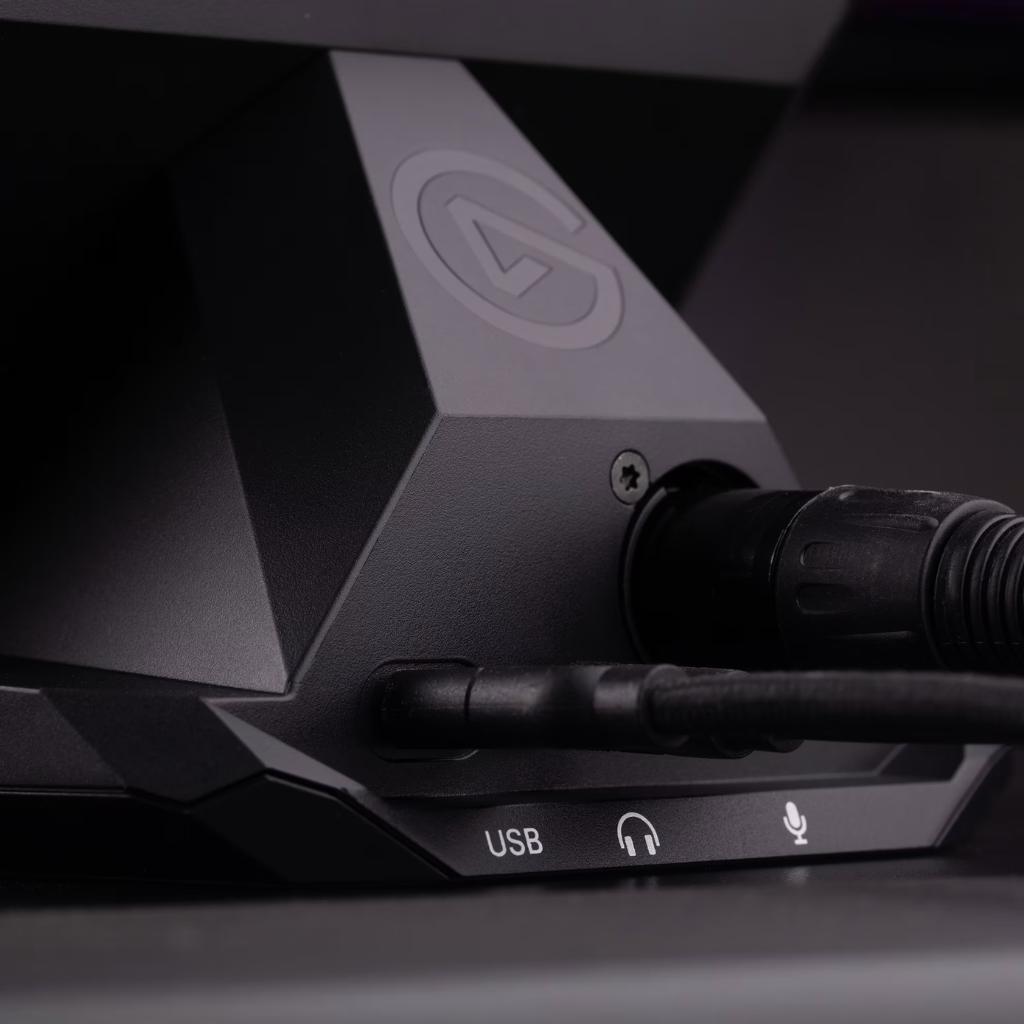

CONNECTORS: Microphone (XLR, Mono), Headphone (3.5 mm Jack, Stereo), Host I/O (USB-C)

POWER CONSUMPTION: 900 mA max

DIMENSIONS: 115 x 137 x 76 mm | 5.39 x 4.53 x 2.99 in (D x W x H)

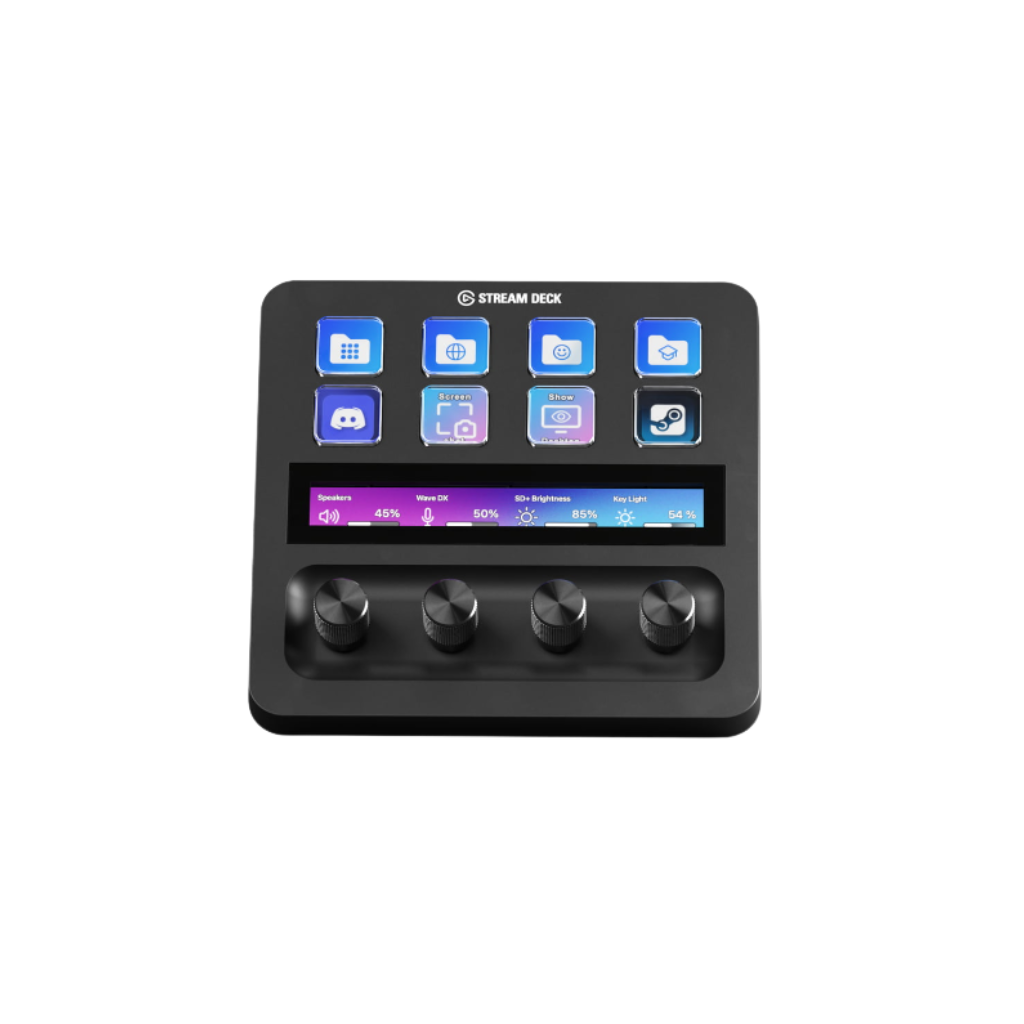

REQUIRED HARDWARE: Stream Deck + (sold separately)

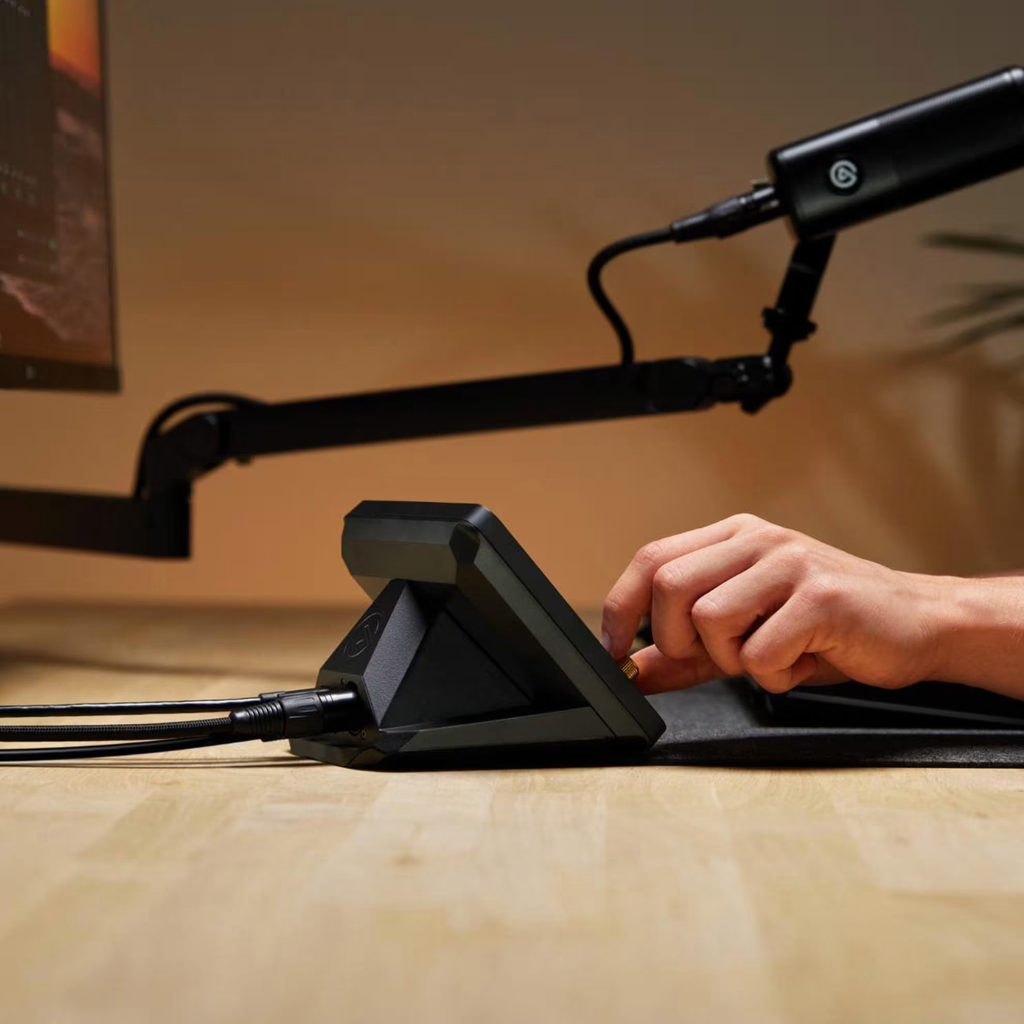

*XLR Dock connects directly to Stream Deck + via the dock's USB-C plug. No cable required.

SYSTEM REQUIREMENT: Windows 11 (64-bit) or newer, macOS Sonoma 14.2 or newer

SOFTWARE:  Wave Link (free download)

                             Stream Deck (free download)

WAVE FX PROCESSOR: Headphones (Wired)

                                                    For zero/ultra-low latency monitoring

IN THE BOX

XLR Dock for Stream Deck + and Quick Start Guide
