MSI MAG 345CQRF E20 34" Curved VA 200Hz UWQHD 3440x1440 0.5ms GTG Rapid Gaming Monitor with Tilt/ Height/ Swivel/ Pivot Adjustment

Model: MAG 345CQRF E20

Panel Size: 34"

Active Display Area (mm): 797.22 (H) x 333.72 (V)

Curvature: Curve 1000R

Panel Type: Rapid VA

Panel Resolution: 3440 X1440 (UWQHD)

Pixel Pitch (H x V): 0.23175(H) x 0.23175(V)

Aspect Ratio: 21:9

Brightness (nits): SDR: 300 cd/m²

Contrast Ratio: 3500:1

DCR: 100000000:1

Signal Frequency: 71.51~285.31KHz(H) / 48~200 Hz(V)

ACTIVATED RANGE: 48~200Hz

Refresh Rate: 200Hz

Response time: 0.5ms (GtG, Min.)

DYNAMIC REFRESH RATE TECHNOLOGY: AMD FreeSync™ Premium Technology

HDR Support: HDR Ready

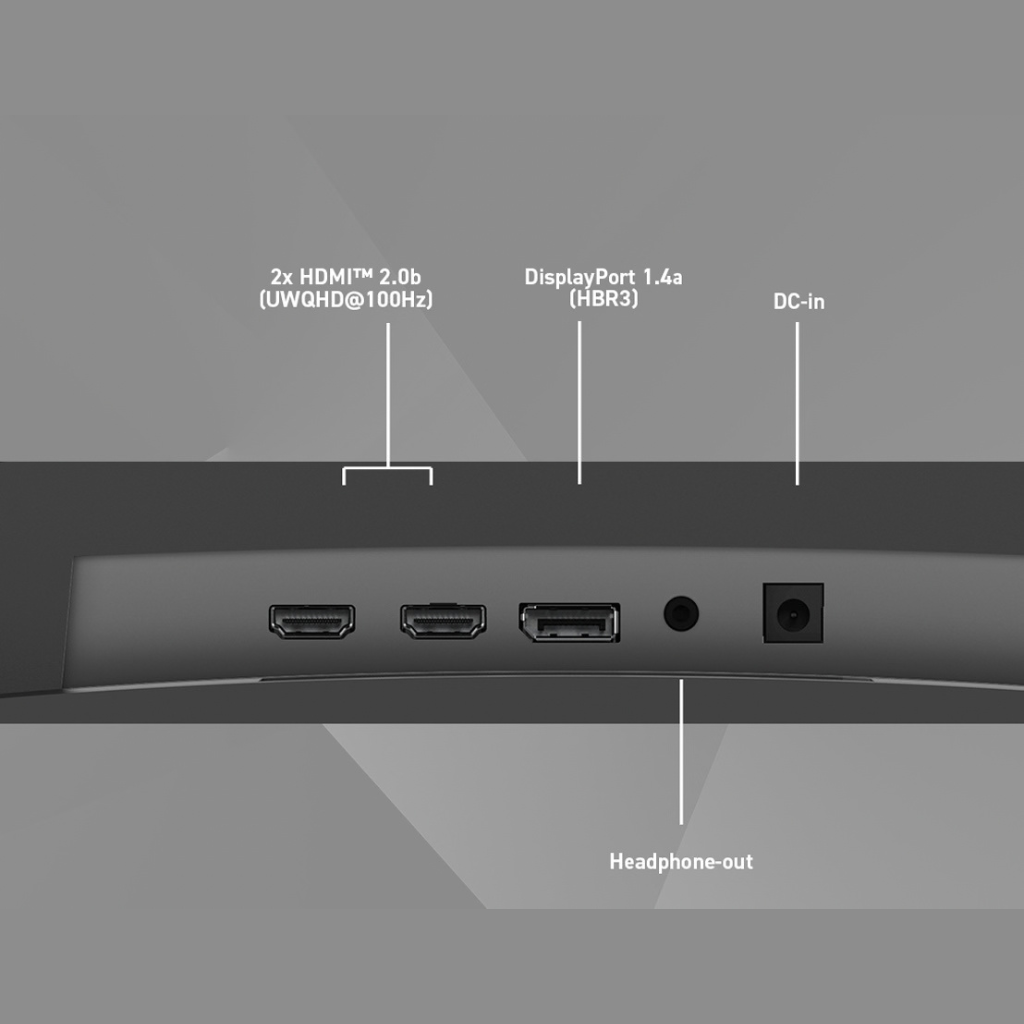

Video ports: 1x DisplayPort 1.4a(HBR3)

2x HDMI™ 2.0b (UWQHD@100Hz)

Audio ports: 1x Headphone-out

Viewing Angle: 178° (H) / 178° (V)

Adobe RGB / DCI-P3 / sRGB: 88% / 90% / 110% (CIE1976 Standard)

Surface Treatment: Anti-glare

Display Colors: 1.07B, 10 bits (8 bits + FRC)



Console Mode: Supported Resolution & Refresh Rate:

1080p: 60Hz and 120Hz

1440p: 60Hz and 120Hz



HDMI™ CEC: Supported

VRR: PS5 and Xbox Supported



Power Type: External Adapter 19V 3.42A

Power Input: 100~240V, 50/60Hz

Adjustment (Tilt): -5°~20°

Adjustment (Swivel): -30° ~ 30°

Adjustment (Pivot): -1.5° ~ 1.5°

Adjustment (Height): 0 ~ 100 mm

Kensington Lock: Yes

VESA Mounting: 100 x 100 mm



Dimension with Stand (W x D x H)

797.53 x 332.32 x 418.9 mm

(31.3 x 13.08 x 16.4 inch)



Dimension without Stand (W x D x H)

797.53 x 158.18 x 363.02 mm

(31.3 x 6.2 x 14.2 inch)



Weight (NW / GW): 7.75 kg (17 lbs) / 11.3 kg (24.9 lbs)



Carton Dimension (W X D X H)

985 x 228 x 510 mm

(38.7 x 8.9 x 20 inch)



Accessories

1x DisplayPort Cable (1.4a),

1x Power Cord (C13),

1x Power Adaptor,

1x Quick Guide,

4x VESA Screw



Note

HDMI™: 3440 x 1440 (Up to 100Hz)

DisplayPort: 3440 x 1440 (Up to 200Hz)

Support: HDMI™ CEC; PIP/PBP; Non Support: KVM
