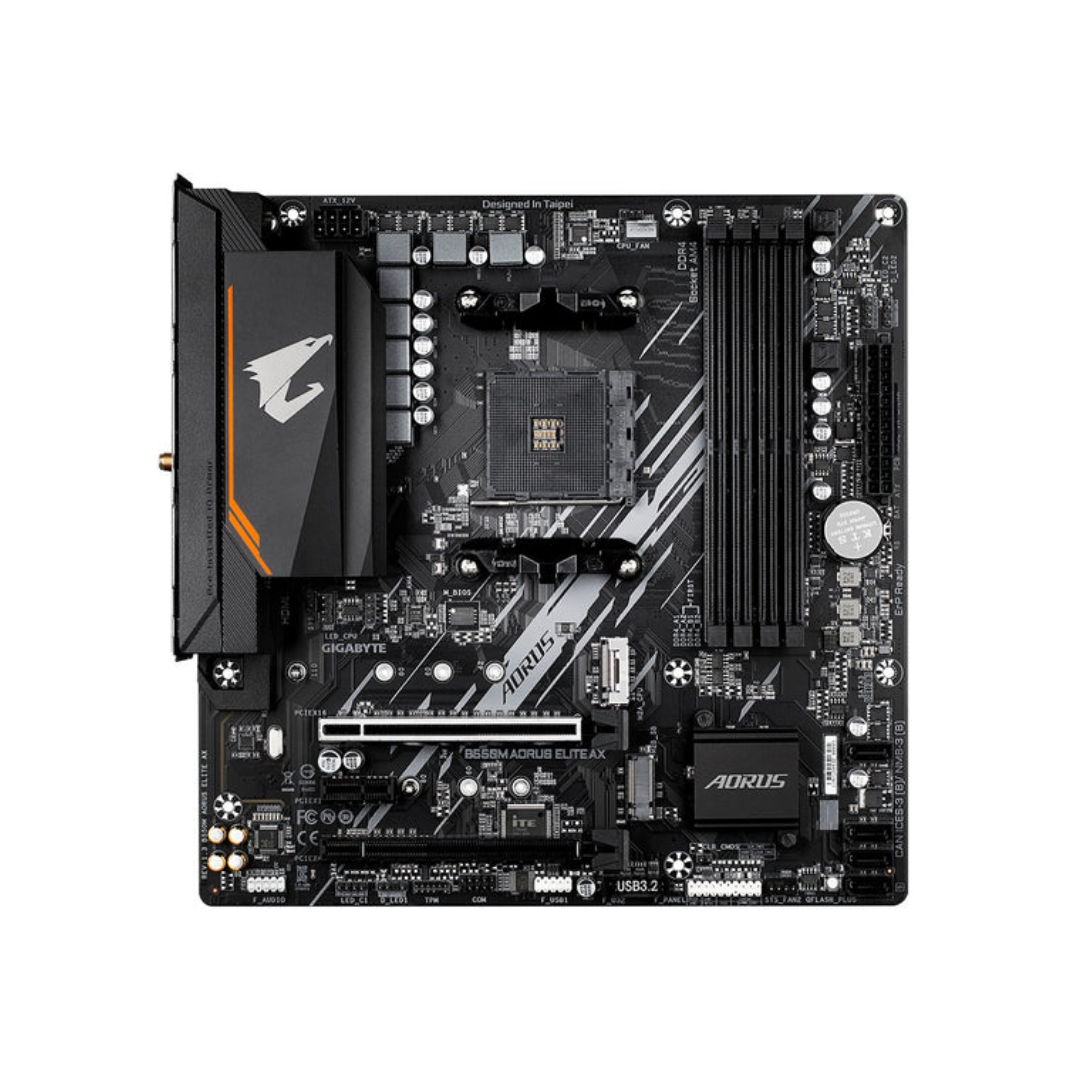

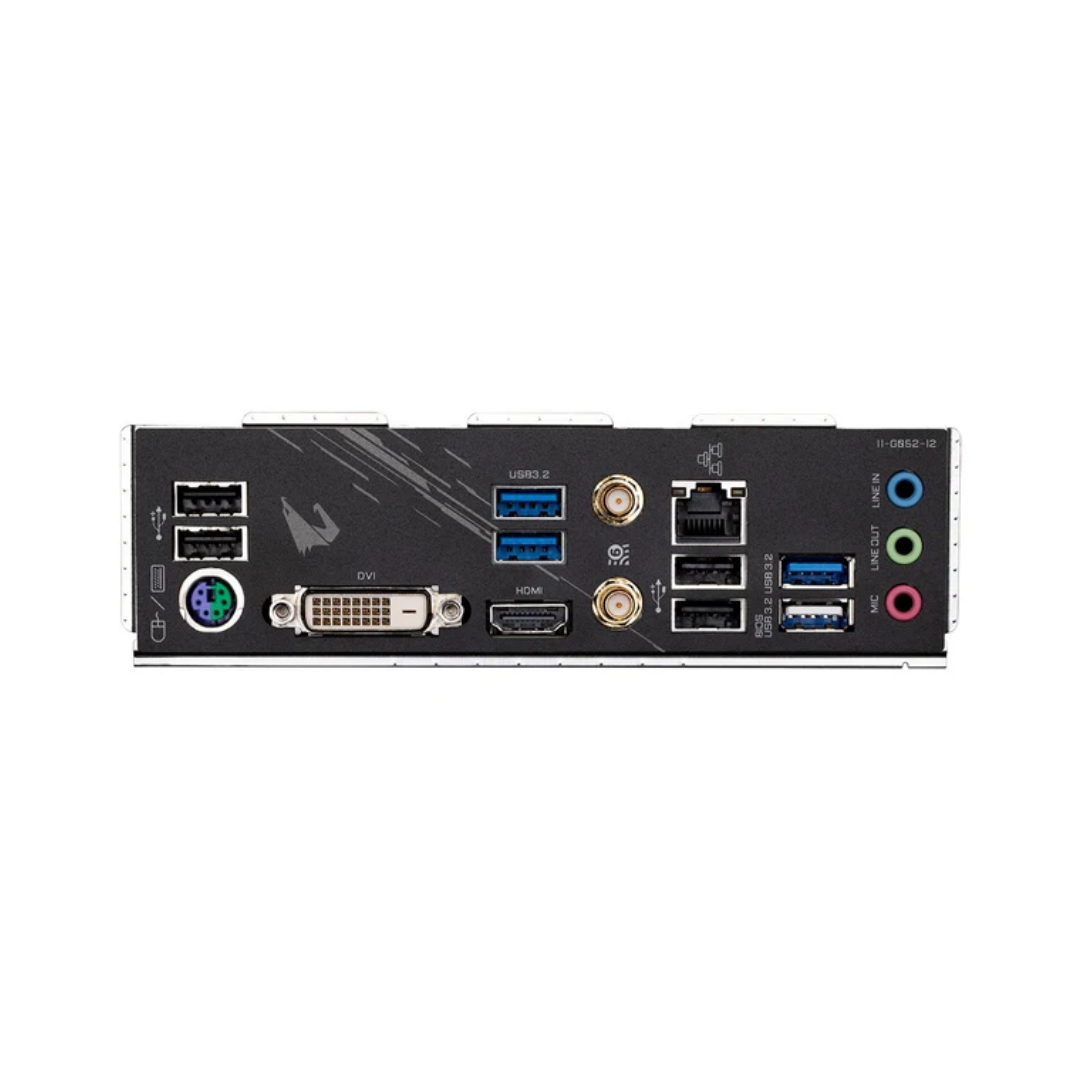

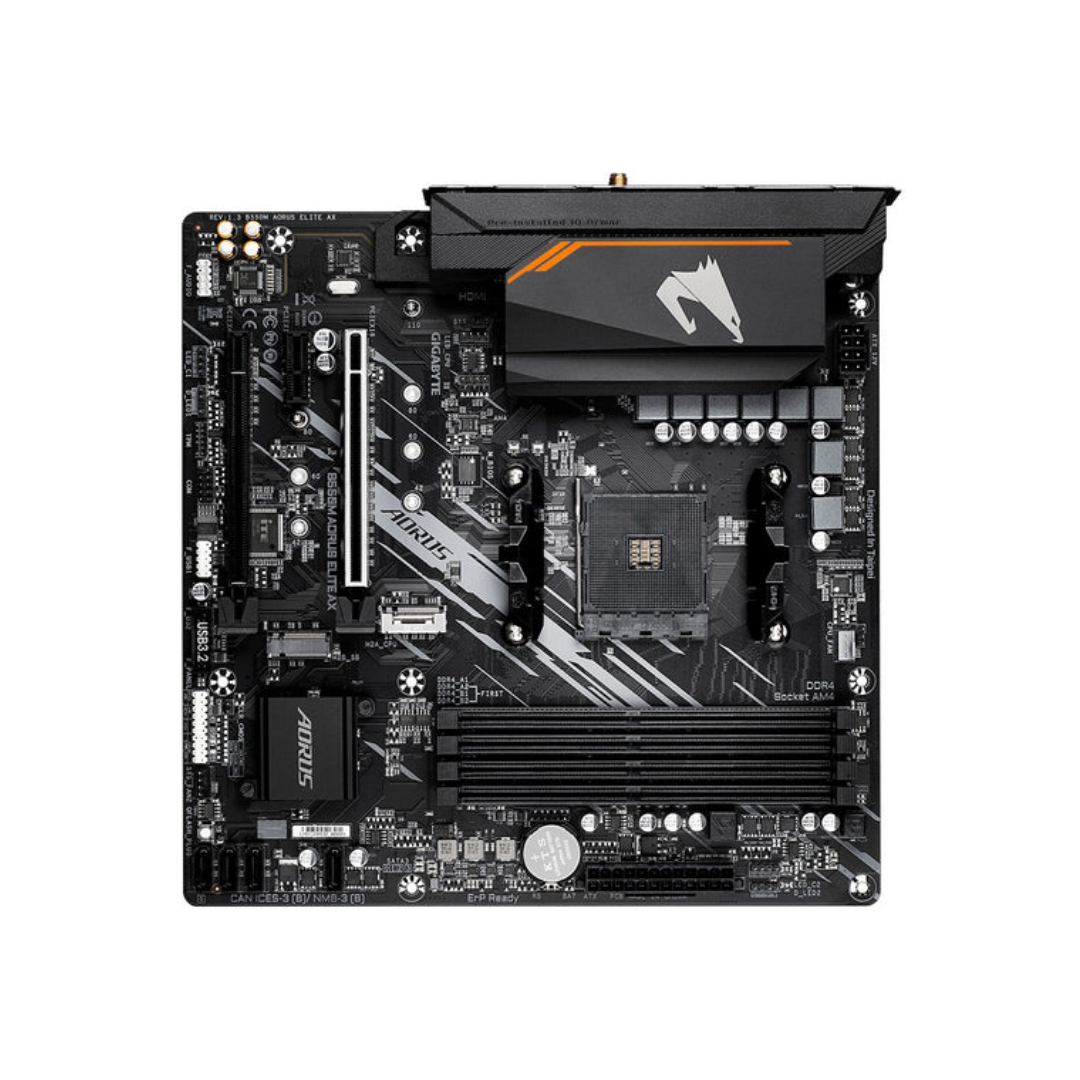

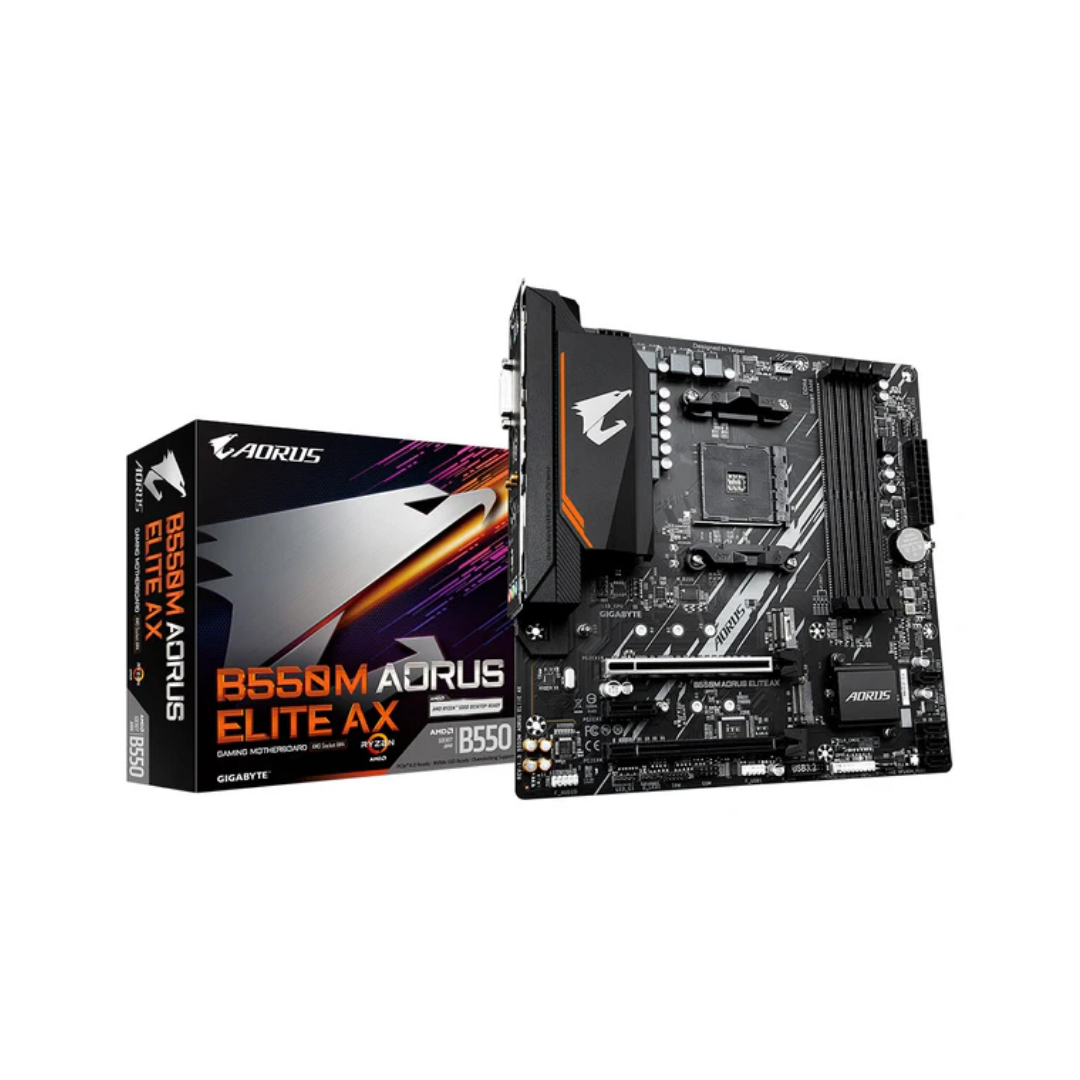

Gigabyte B550M AORUS ELITE AX (AM4) Motherboard
Gigabyte B550M AORUS ELITE AX (AM4) Motherboard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery
Delivery
Delivery
- Orders are processed via email/live chat during normal office hours unless there is a problem that requires further verification by a billing specialist. It is possible we may need to call you to verify your order. We will deliver your order as soon as possible and if there is a problem we will contact you to get your order to you in a timely manner.
- Office hours are Monday thru Saturday 9AM to 7PM, Sundays 9AM to 6PM.
- When contacting us about your order please include your Full Name and Items Ordered to speed up the process. We receive a lot of orders a week and your email address and/or name alone may not quickly identify your order. To ensure that we receive your inquiry, do NOT send us email with attachments.
- Delivery fee applies. Contact Us.
- If you have not received your order, please contact us with your name and items ordered.
Shipping
- If you have a preferred branch, please add an order note and let us know.
- Item pick up from branch is to be arranged and shouldered by the customer.
- Freight collect. Buyer shoulders shipping cost for orders and returns.
- Goods travels at buyer’s risk. Our responsibility ceases when merchandise is handed to the courier.
- Bank deposits or money transfer on items for shipment. Items are released only after we verify the deposit.
- Shipping fee will be sent via e-mail after checkout, to be shouldered by buyer.
- Shipping fees are not refundable under any circumstance.
- Other shipping methods are available upon request, however, should you select uninsured shipping we will not be held responsible for loss or damage of your purchase.
- International Shipping Information is available upon request.
- Dynaquest reserves the right to cancel and refund the order in case complications arise regarding stock availability.
Warranty
Warranty
- Item compatibility is buyer’s responsibility.
- Check all items upon receipt.
- Item has 7 days replacement and 1 year store warranty only upon purchase.
- Replacement is only for defective items.
- Change of mind return or replacement is not accepted.
- NO Cash Refund.
- If claiming warranty, buyer must bring the item(s) in store or arrange and shoulder shipping cost.
- Mishandling, improper integration, or physical damage (including but not limited to burnt, dented, or cracked items) will void the warranty.
- Tampered warranty sticker voids the warranty.
- Overclocking may void the warranty.
- Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
- Defective items for warranty are subject for pull out and RMA services.
Payment
Payment
- Always inquire for stock availability. Some items are order basis from the supplier.
- Cheque payments are subject to 3 banking days clearing.
- Full payment is required for order basis and/or reservation.
- The products will be reserved until 6 PM of the next business day. Please send your payment and proof of payment before 6 PM of the next business day.
- Images posted are for reference only. Actual product may vary.
- Prices and specifications may change without prior notice.
CPU: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
Chipset: AMD B550
Memory:
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor with AMD Radeon
Audio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module:
Realtek® Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Expansion Slots:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification.
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Interface:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
