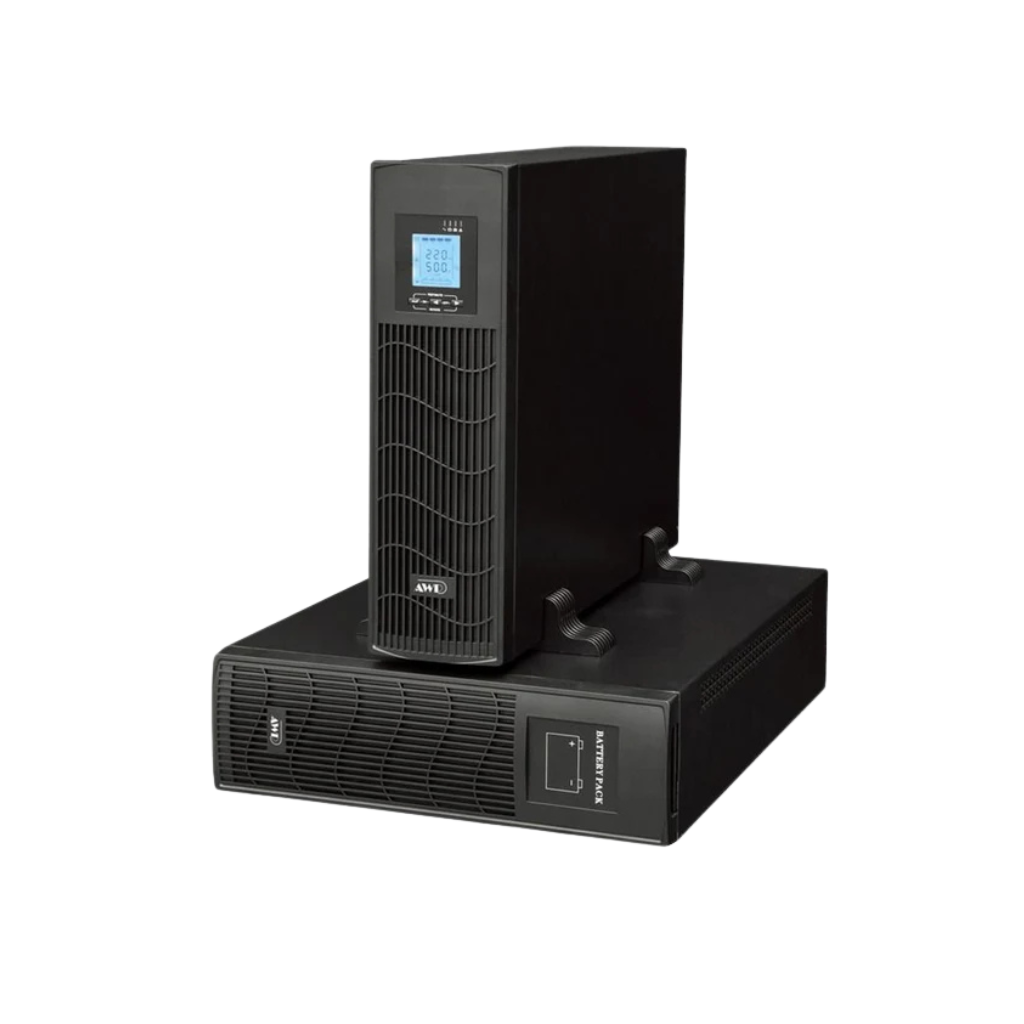

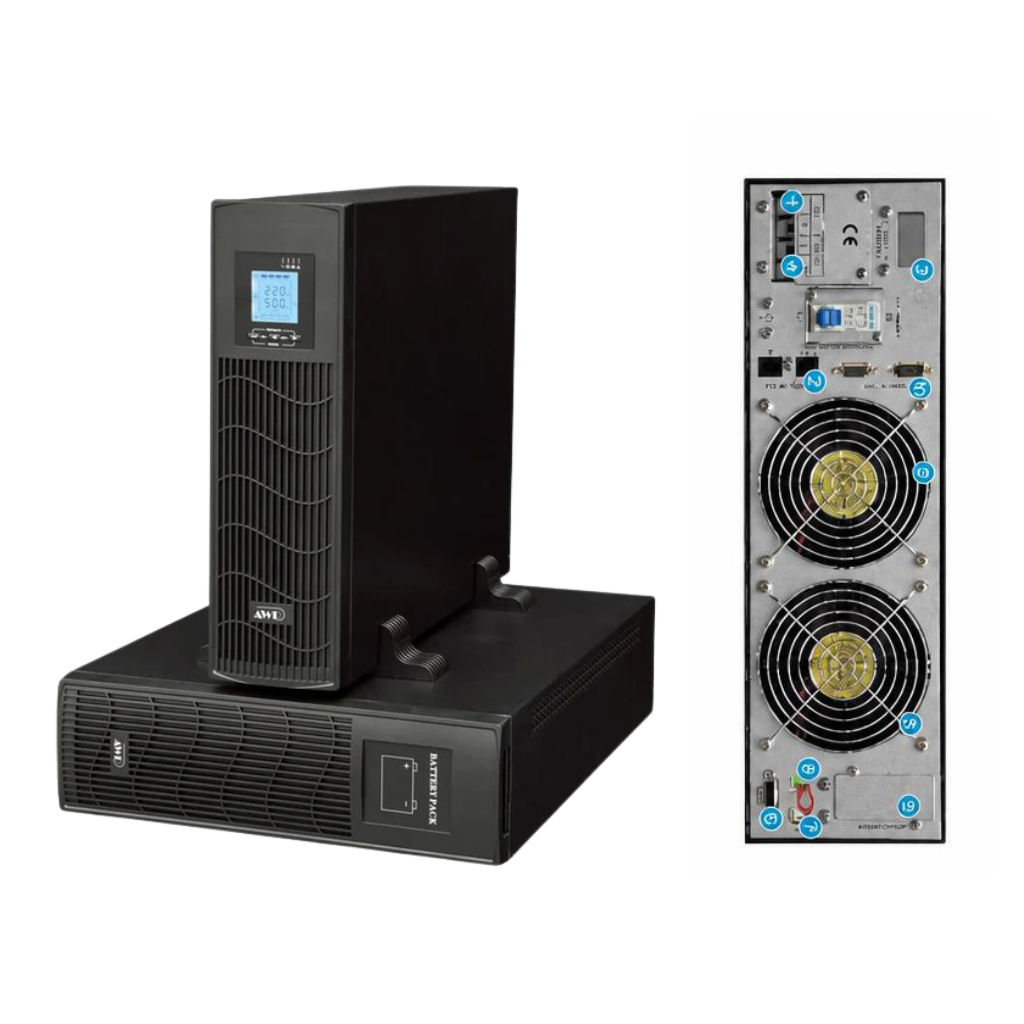

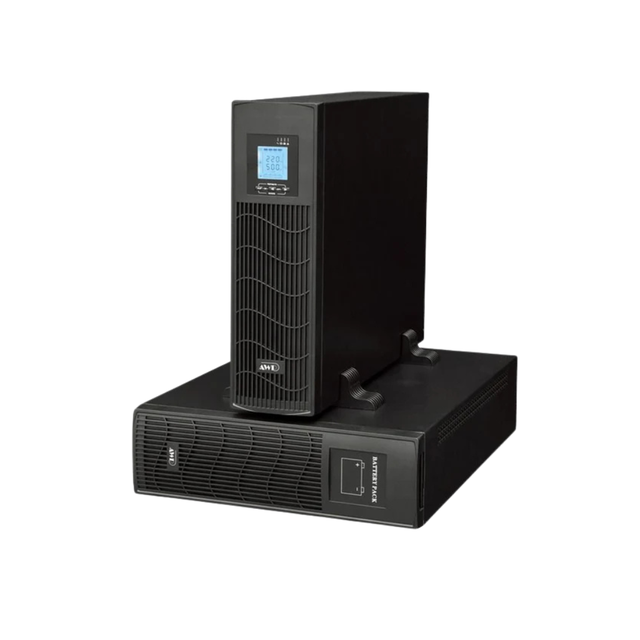

AWP ALR6000 Alpha RT 6000VA/5400W On-line Double-Conversion UPS

Key Features

• Rack / Tower design

• High frequency and true double-conversion

• DSP digital control technology

• Input power factor correction (PFC)

• Wide input voltage range (110 V ~ 300 V)

• Output power factor 0.9

• Cold start

• Auto sensing frequency

• ECO mode operation for energy saving

• Selectable output voltage via LCD

• 50 Hz / 60 Hz frequency conversion mode

• Selectable battery low voltage via LCD

• Power-on self test

• Advanced battery management (ABM)

• Short circuit and overload protection

• Automatic charging in OFF mode

• Fan speed auto control when temperature varies

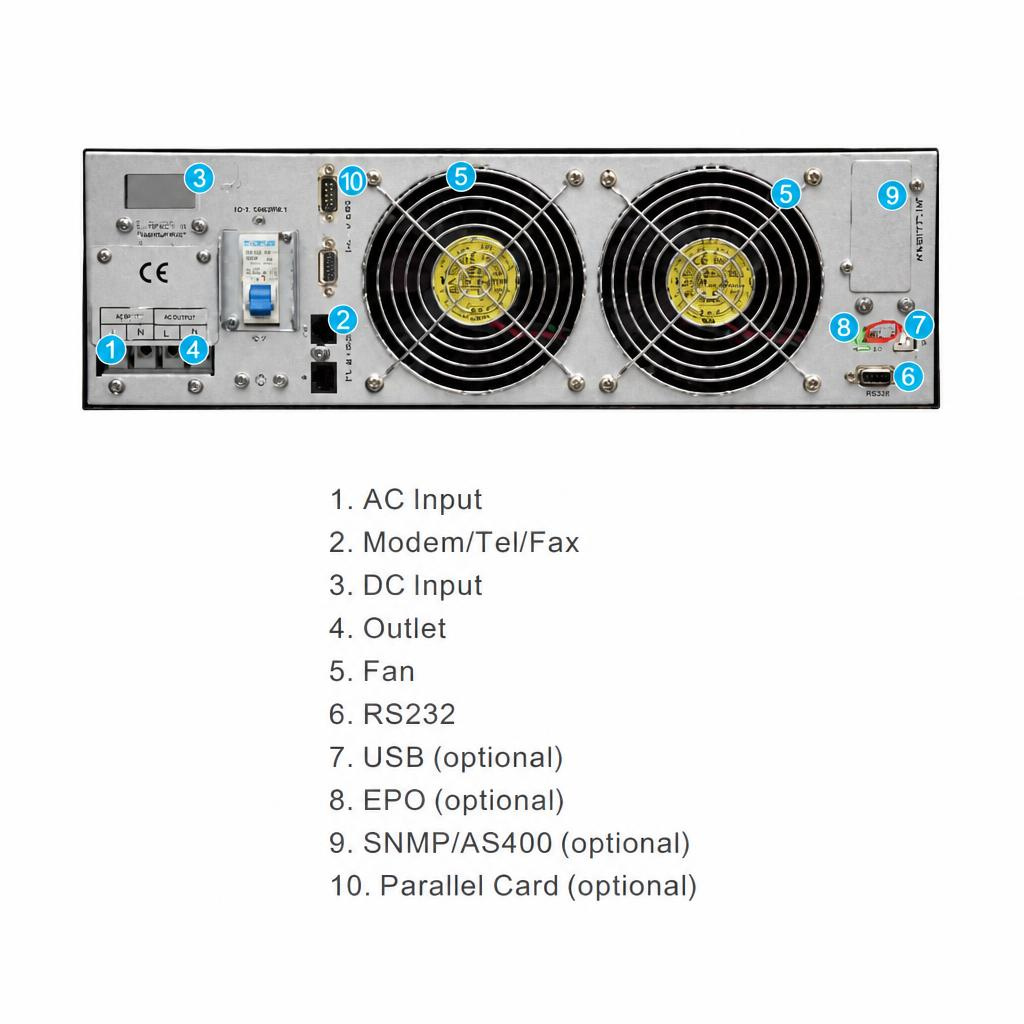

• Standard RS232 communication port and RJ45 protection

• Optional USB / SNMP communication port

• Optional emergency power off (EPO)

• Optional extension battery bank

• Optional N+X redundancy parallel

• Optional external maintenance bypass

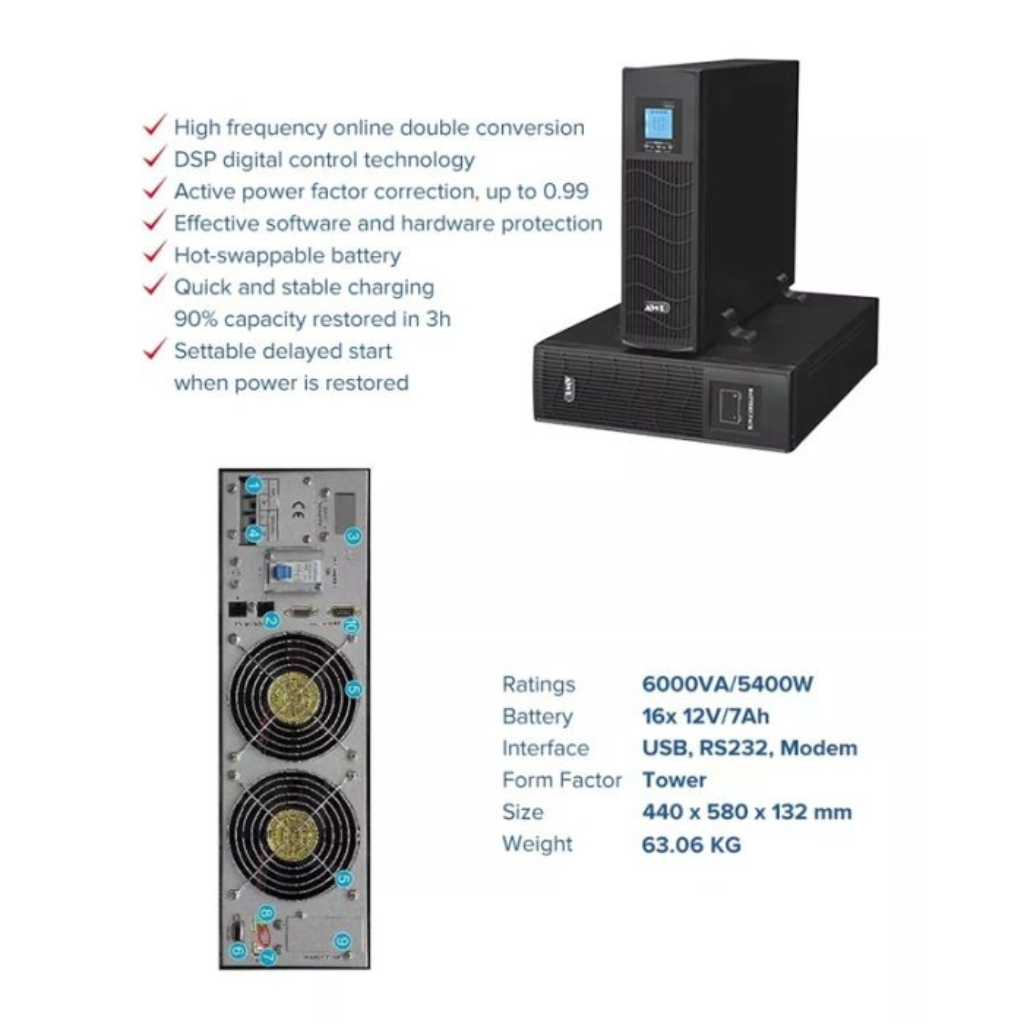

Technical Specifications

Model: ALR6000

Capacity: 6000VA / 5400W

Form Factor: Rack/Tower Convertible

Batteries

DC Voltage: 192 V

Built-in Battery of Standard Model: 12 V / 7.0 Ah × 16

Charging Current (Max)

Standard Model : 1A

Long time model: 1A / 3A / 5A / 8A

Recharge Time: 8 Hrs

Alarms

Utility Failure: 4 s per beep

Low Battery: 1 s per beep

Overload: 1 s twice beep

UPS Fault: Long beep

Dimensions (W x D x H) (mm)

440 × 580 × 132 (UPS)

440 × 580 × 132 (Battery)

Packaging Dimensions (W x D x H) (mm):

535 × 660 × 215 (UPS)

540 × 685 × 235 (Battery)

Net Weight / Gross Weight (Kg)

16.4 / 20.7 (UPS)

43.6 / 47.1 (Battery)
